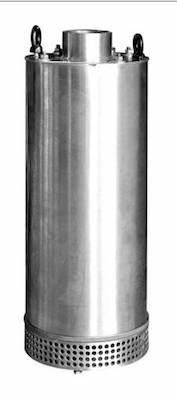

Openwell Submersible Pumps - DWSS

Overview

The entire pump is built with stainless steel, right from body to the impeller and shaft, making it light and resistant to corrosion. This pump is sealed mechanically from both inside and outside, preventing electrical and water leakage during its operation and enhancing life of the pump. Positioning the suction at the bottom edge of the pump facilitates removal of water, right up to the bottom level.

Features

Fully stainless steel pump

Dual mechanical seal

Compact design

Dual ball bearing

PP insulation

Applications

--Small and heavy duty dewatering applications in:

Basements

Construction sites

Mines, pits and quarries

Narrow coffers

Specifications

Head : 5 to 24 meters

Capacity : 19.5 to 1 LPS

Power rating : 0.75 kW - 3.7 kW (1 HP - 5 HP)

Phase : 3

RPM : 2750

Downloads

DWSS

IOM - DWSS
