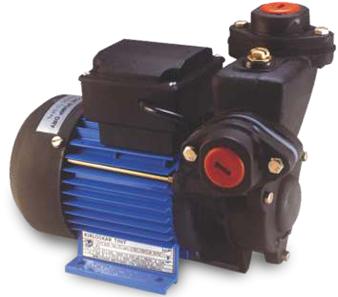

Mini Family - TINY

Overview

These pumps are designed with aluminium extruded motor body for better heat dissipation and corrosion resistance. Double shielded ball bearing ensures no external lubrication. Impeller is of high tensile brass and delivery casing is of cast iron. These are used in bungalows, hospitals, small fountains and so on. This small sized pump fits in even in tight places. It is made of high quality materials for better performance and longer life.

Features

Aluminum extruded motor body for better heat dissipation and corrosion resistance

Motor can withstand wide voltage fluctuation from 180 - 240 Volts

Capable of priming up to 3 meters static suction lift without foot valve, at rated head and discharge (IS 8472:1998)

Fitted with Thermal Overload Protector (TOP) preventing motor burn out at lower voltage

Totally enclosed fan cooled (TEFC) - no entry of dust moisture

Capacitor starts and runs motor with IP-44 protection

‘B’ class of insulation

Capacitor inside terminal box

Double shielded ball bearing - needs no external lubrication

Applications

Water supply for domestic use in Bungalows, Hospitals, Garages, Industries, Small

Fountains, Solar Heating Systems etc

Specifications

Head : 3 to15 meters

Capacity : 1600 to 600 LPH

Power Rating : 0.18 Kw (0.25 HP)

Voltage Range : 180 to 240 Volts

Impeller : High Tensile Brass

Delivery Casing : Cast Iron

Mounting Casing : Cast Iron

Motor Body : Aluminum.

Shaft : Carbon Steel (Chrome Plated)
