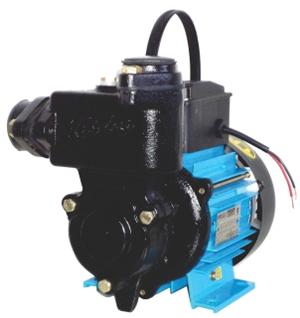

Mini Family - POPULAR LV

Overview

This is an extremely efficient pump with a wide range of applications.

Capable of priming up to 3 meters static suction lift without foot valve, at rated head and discharge

Thermal Overload Protector (TOP) for safety of motor

‘B’ class of insulation

Motor can withstand wide voltage fluctuation from 100 - 180 Volts

Lightweight pump for easy handling

Capacitor inside terminal box

TEFC capacitor start and run motor

Water supply for domestic use in Bungalows, Apartments, Hotels, Farmhouses etc.

Useful in home pressure booster systems, lawn sprinklers, overhead tanks and watering for gardens.

Head : 6 - 28 m

Capacity : 2700 - 450 lph

Power Rating : 0.5 HP

Voltage Range : 100 - 180 V

Impeller : Brass

Pump shaft : Carbon steel

Delivery Casing : Cast Iron

Mounting Casing : Cast Iron

Motor Body : Extruded Aluminum

Cover NDE : Aluminum

Mechanical Seal : Carbon Ceramic
