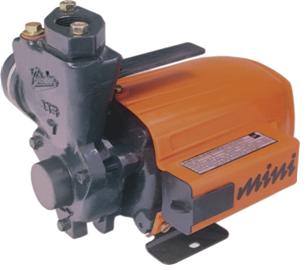

Mini Family - MINI

Overview

These are single phase, end suction monoblocs with portability. These are noiseless pumps and available in stainless steel. These pumps have delivery size 20 mm and 25 mm. These are used in apartments, villas, booster service, hospitals and hotels. This multi-purpose, durable pump is available in both 1 and 3 phase.

Features

Can withstand wide voltage fluctuations,from 180 to 240 volts

Self priming up to 3 metres

Thermal Overload Protector (TOP) prevents motor burning out

Stainless steel shaft avoids rusting problems

Locked impeller results in consistent performance

High quality aluminium extruded motor body

TEFC capacitor start and run motor, with IP- 44 protection and class 'B' insulation

Double shielded ball bearing - no need for external lubrication

Capacitor inside terminal box

Single phase and three phase options available

Applications

Water supply for bungalows, apartments, hotels, hospitals, farmhouses etc.

Useful in home pressure booster systems, lawn sprinklers, overhead tanks and watering gardens

Specifications

Head : 6 to 28 metres

Capacity : 3150 to 720 LPH

Power Rating : 0.37 kW (0.5 HP)

Voltage Range : 180 to 240 Volts - single

phase, and 300 to 440 Volts - three phase

Impeller : Forged Brass

Delivery Casing : Cast Iron

Motor Body : Cast Iron

Fan Cover : Plastic

Mounting Casing : Cast Iron

Shaft : Carbon Steel

(Chrome Plated)

Downloads

Mini Family - MINI

Send Inquiry for this product
