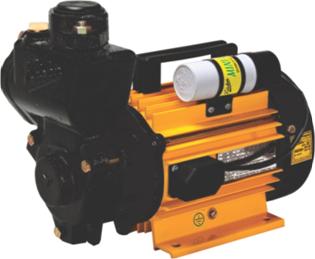

Mini Family - MINI 40S

Overview

These are single and three phase, end suction monobloc pumps with portability. These are noiseless pumps and available in stainless steel. High head and discharge makes this pump suitable for a wide variety of uses.

Features

Total head - 40 metres

Self priming up to 3 metres

Can withstand wide voltage fluctuations from 180 to 240 Volts

Thermal Overload Protector (TOP), protects motor from burning out

Chrome plated shaft to avoid rust problems

Motor with IP-44 protection and class 'B' insulation

Shielded ball bearings - no need for external lubrication

Lightweight pump for easy handling

Available in single and three phase options

Applications

Water supply for domestic use in bungalows, apartments, hotels, hospitals, farmhouses etc.

Useful in home pressure booster systems, lawn sprinklers, overhead tanks and watering gardens

Specifications

Head : 10 to 40 metres

Capacity : 3000 to 200 LPH

Power Rating : 0.75 kW (1.0 HP)

Voltage Range : 180 to 240 Volts – single phase, and 300 to 440 Volts - three phase

Impeller : H. T. Brass

Delivery Casing : Cast Iron

Motor Body : Aluminium

Shaft : Carbon Steel (Chrome Plated)
