Mini Family - CMS

Overview

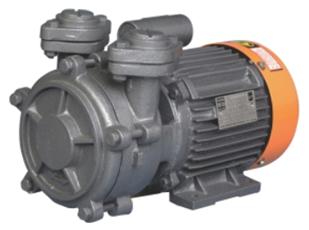

Featuring a sturdy design, this pump is fitted with a Totally Enclosed Fan Cooled motor for longer life.

Self-priming up to 3.0 meters at mean seal level.

Motor can withstand with wide voltage fluctuation from 180- 240Volts

Unique Motor design- TEFC - capacitor start & run motor eliminating centrifugal switch.

‘B’ class of insulation.

Fitted with high quality & long life mechanical seal.

Fitted with Thermal Overload Protector (TOP) for safety of Motor.

Both Side Shielded ball bearing, no need of external lubrication.

Sturdy & rigid construction.

Pump casing made of closed grains cast iron of high tensile strength and has a very smooth surface finish resulting in low friction losses.

Brass impeller is used to give trouble free servicesz

Water supply for domestic use in Bungalows, Apartments, Hotels, Farmhouses etc.

Useful in home pressure booster systems, lawn sprinklers, overhead tanks and watering for gardens.

Head : 10 to 38 meters

Capacity : 2570 to 500 LPH

Power Rating : 0.37 Kw/ 0.5 HP to 0.75 Kw/ 1.0 HP

Voltage Range : 180 to 240 Volts (1 phase)

Impeller : Brass

Pump shaft : Carbon steel

Delivery Casing : Cast Iron

Mounting Casing : Cast Iron

Motor Body : Cast Iron

Cover NDE : Cast Iron

Mechanical Seal : Carbon Ceramic
