Mini Family - Pumba Puzha

Overview

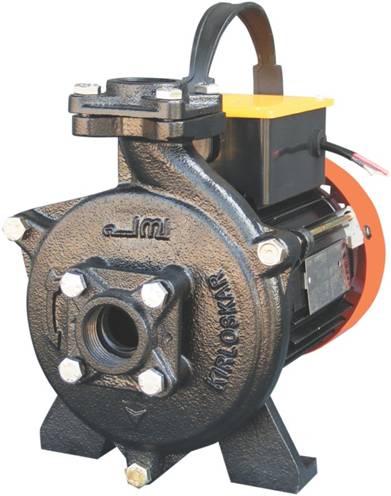

These pumps are designed for better performance in domestic applications. They have high quality aluminum extruded motor body with chrome plated shaft. These pump can withstand wide voltage fluctuations from 180 V to 240 V. They are ideal for water supply for domestic use in Bungalows, Apartments, Hotels, Hospitals, Farm houses, etc. Useful in home pressure booster systems, lawn sprinklers, overhead tanks and watering for gardens. Extra high head of 50 meters makes this pump ideal for domestic as well as institutional use.

Features

Aluminum extruded motor body for better heat dissipation and corrosion resistance

Motor can withstand wide voltage fluctuation from 180 - 240 Volts

Capable of priming up to 3 meters static suction lift without foot valve, at rated head and discharge (IS 8472:1998)

Fitted with Thermal Overload Protector (TOP) preventing motor burn out at lower voltage

Totally enclosed fan cooled (TEFC) - no entry of dust moisture

Capacitor starts and runs motor with IP-44 protection

‘B’ class of insulation

Capacitor inside terminal box

Double shielded ball bearing - needs no external lubrication

Applications

Water supply for domestic use in Bungalows, Apartments, Hotels, Hospitals, Farm houses etc.

Useful in home pressure booster systems, lawn sprinklers, overhead tanks and watering for gardens

Water circulation in small industries

Specifications

Head : 6 to 50 meters

Capacity : 2580 to 140 LPH

Power rating : 0.37 kW to 0.75 kW

Voltage range : 180 - 240 volts
