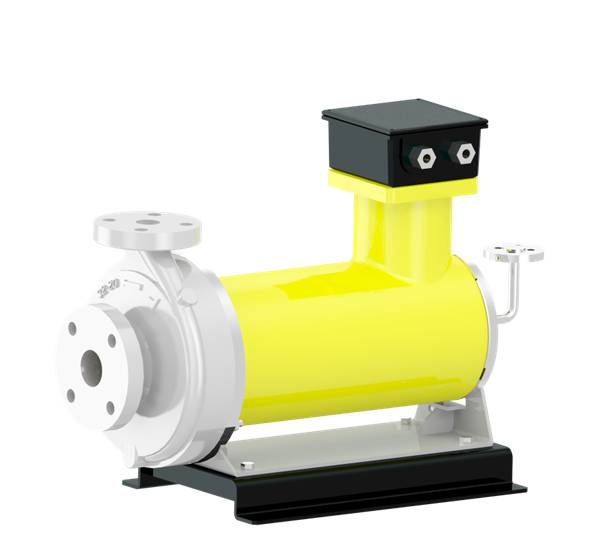

End Suction Process Pump - i-CM

Overview

Canned Motor pumps are ideal for pumping corrosive and noxious fluids that are used in chemical and process industry, refrigeration plants, paint industry and refinery & petrochemicals.

Features

i-CM pump is end suction type sealless, glandless and emission-free Canned motor pump, having integral motor design due to which it is compact in construction and light in weight.

Sealless and glandless pump

Integrated motor design due to which it is compact in construction and light in weight

Applications

Liquefied gases (e. g. ammonia, freons, carbon dioxide, amines, vinyl chloride, ethylene oxide, phosgene (>150°C), etc.

% Aggressive / toxic /explosive / hazardous / flammable chemicals (sulfuric acid, nitric acid, hydrofluoric acid, hydrocyanic acid, ethanoic acid, formic acid, etc.)

Specifications

Delivery size : 32 to 50 mm

Capacity : 4 to 80 m3/hr

Head : Up to 60 m

working pressure : 16 bar

Temperature : Up to 90 °C

Downloads

i-CM

IOM - i-CM
