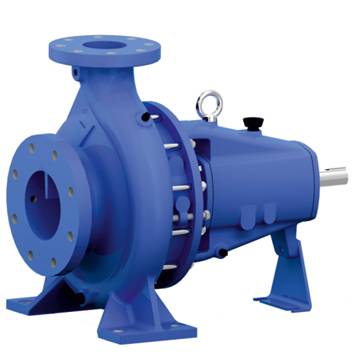

End Suction Process Pump - GK(P)

Overview

These pumps are developed for process applications and are generally conforming to ISO 2858 / DIN EN 22858 / ISO 5199. These pumps are ideal for Acids / Alkalies, Hydrocarbons, oils, Various Process Chemicals, Food processing units. Delivery size up to 150 mm.

Features

  • End suction centrifugal process pump
  • Back pull out design
  • Top centerline discharge with foot mounted as well as centerline volute casing
  • Availability of cooling jackets to cool stuffing box for liquids having temperature more than 105 deg. cel

  • Applications

  • Acids / Alkalies
  • Hydrocarbons, oils
  • Various Process Chemicals
  • Food processing units

  • Specifications

  • Delivery size : Up to 150 mm
  • Capacity : up to 500 m3/h
  • Head : up to 150 m
  • working pressure : 16-25 bar
  • Temperature : Up to 180°C

  • Downloads

    End Suction Process Pump - GK (P)

    IOM - GK(P) Pump
